Huawei WiFi Mesh X3 Pro


HUAWEI WiFi Mesh X3 Pro – Wi-Fi 7 meets art

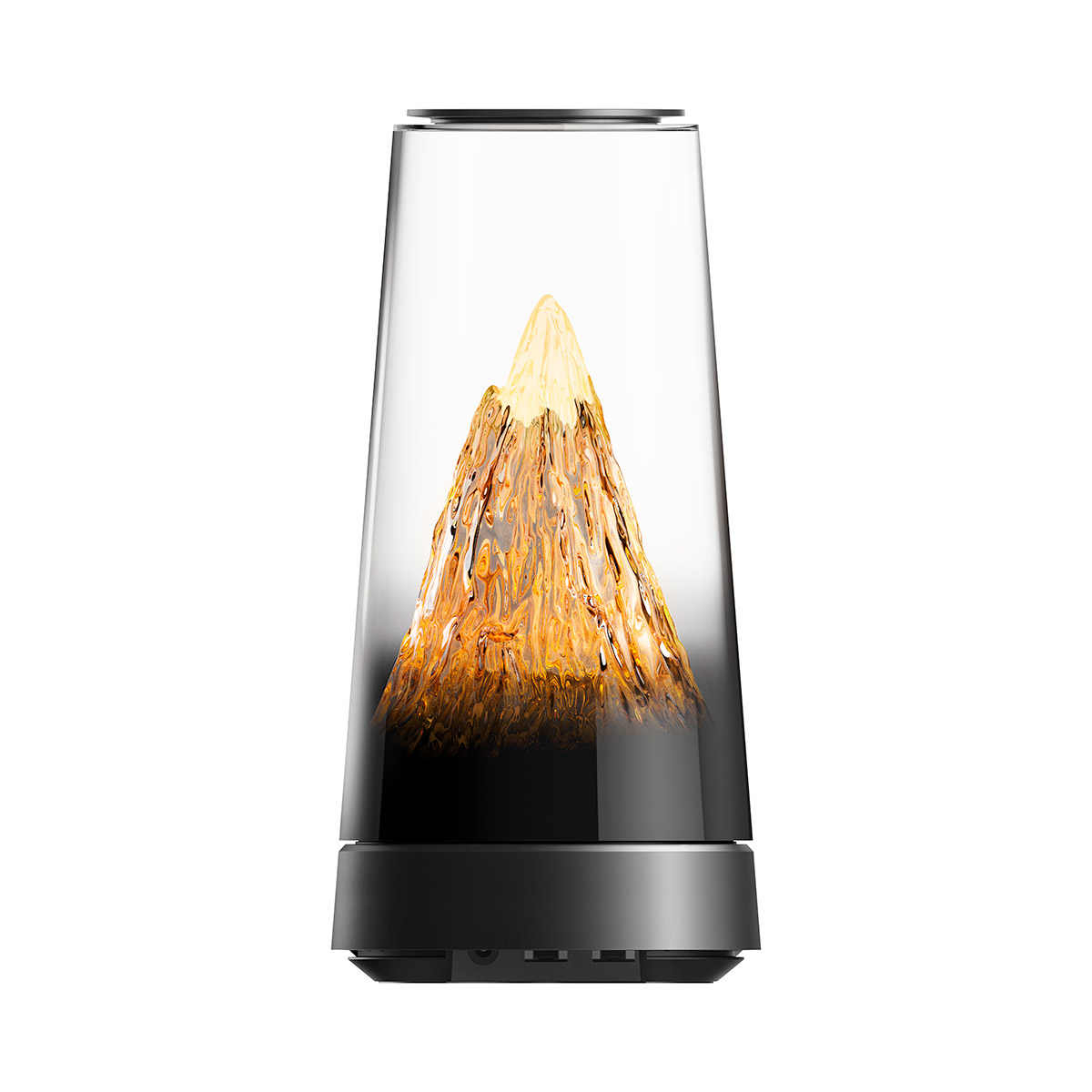

The HUAWEI WiFi Mesh X3 Pro sets a new standard for router design by combining nature-inspired aesthetics with cutting-edge networking technology. Inspired by the “Golden Mountain Glow” phenomenon, the device captivates with its transparent acrylic body, three-dimensional mountain textures and dynamic lighting effects that mimic sunrise and snowfall. The result is a striking ensemble that serves as both a decorative element in your home and a powerful networking hub.

As the industry’s first router with transparent antennas, the X3 Pro utilizes the latest Wi-Fi 7 technology and delivers theoretical speeds of up to 3.6 Gbps along with seamless whole-home coverage for a fast, stable and immersive internet experience.

Key Features

Nature-Inspired Design

• Clean and elegant design that breaks the boundaries of traditional router design
• Transparent acrylic body and 3D structure reminiscent of a mountain landscape
• Dynamic lighting effects mimic the sunrise and sunset
• Unique, transparent metal mesh antenna

Easy Mesh – seamless and efficient network connection

The HUAWEI WiFi Mesh X3 Pro system requires no separate setup. Plug the extender into a power outlet, and it will automatically join your existing network.

HUAWEI WiFi Mesh+ technology ensures that your devices are always connected to the best possible signal. As you move from room to room, the connection automatically switches to the strongest access point with less than 50 ms delay – completely seamless.

Superfast Wi-Fi 7 – up to 3.6 Gbps

• Dual-band Wi-Fi 7 (2.4 GHz & 5 GHz)
• Up to 3600 Mbit/s connection speed
• Multi-Link Operation (MLO) for simultaneous dual-band connections
• 4K-QAM modulation for more efficient data transmission
• Better capacity and interference immunity

Transparent metal mesh antenna

Conductive circuits engraved with micro-precision machining technology are integrated directly into the transparent material. The antenna blends seamlessly into the mountain-like design – providing a strong and stable signal without compromising on aesthetics.

Shark Fin Cooling System

The shark fin-like fan and two-way air circulation structure enhance heat dissipation. The solution enables more efficient cooling compared to traditional systems and ensures performance even under heavy loads.

HUAWEI AI Life App

Manage your home network intelligently:

• Real-time Wi-Fi coverage heat map
• One-tap optimization
• Troubleshooting tools
• Parental control and device speed limit
• Guest network and schedules

Specifications

• Dimensions:
  • X3 Pro: 153 × 153 × 327 mm
  • X3 Pro extender: 139 × 139 × 150 mm
• Weight: 2565 ± 15 g (including packaging)
• Color: Black
• Wireless: 802.11b/g/n/ax/be 2×2 (2.4 GHz) & 802.11b/g/n/ax/be 2×2 (5 GHz), MIMO
• Connection speed: Up to 3600 Mbps
• Antennas:
  • X3 Pro: 6 high-performance antennas
  • X3 Pro extender: 6 high-performance antennas
• Memory: 512 MB RAM + 128 MB ROM
• Network ports:
  • X3 Pro: 2 × 10/100/1000/2500 Mbps WAN/LAN (auto-sensing)
  • X3 Pro extender: 1 × 10/100/1000 Mbps LAN
• Button: Reset
• Power source:
  • Power consumption: < 24 W
  • AC/DC power supply: 12 V DC, 2 A
• Software: HUAWEI AI Life App
• Functions: 802.11k/g/r protocols, PPPoE/DHCP/static IP/bridge WAN connections, Wi-Fi timer, guest network, device speed limit, Wi-Fi access control, parental control, VPN passthrough, DMZ/virtual server
• Security: WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE, Wi-Fi access control, Guest Wi-Fi, hidden SSID, firewall
• Operating environment:
  • Operating temperature: 0 °C - 40 °C
  • Storage temperature: −40 °C – +70 °C
  • Operating humidity: 5% – 95% RH, non-condensing
  • Storage humidity: 5% – 95% RH, non-condensing

Package contents HUAWEI WiFi Mesh X3 Pro, HUAWEI WiFi Mesh X3 Pro extender, Power supply: 2 pcs, Network cable, Quick start guide and safety information
